APE LABS W-APP Wireless DMX Transceiver & App

The device can be used as Ape Labs App Dongle, Wireless DMX Transmitter (for any DMX controllers), Wireless DMX Receiver, or Master Microphone for Sound Active Mode. Use Ape Labs android app to address and/or set-up fixutres. The app includes many new features. A color picker and battery run-time selection are now available. Custom colors, custom programs, and many other great features…plus more to come! The latest version of the App in the App Store automatically provides the required updates for the Ape Labs lights. The App is free and can be downloaded on an unlimited number of devices. The firmare updates for each fixture can be done wirelessly thru the W-App. (iOS coming soon)



• Android Phone/Table will Bluetooth to W-App
• W-App will Communicate with Lights via 2.4Ghz
• Constantly updated App with email feedback
• Built-in battery for 50 hours of operation per charge
• wireless DMX transmitter and receiver
• Each Ape Labs light can get its own DMX address
• 300 meters (1,000ft) Wireless Range to Lights
• Address Lights wirelessly thru App
• Sound Active Option to Use W-App as Master Microphone, or each fixture
• 3 pol. Neutrik DMX jacks in/out
• All ApeRemote Features Plus More
• 4 group management (and ability to toggle 1, 2, 3, or all at a time)
• Transmission of up to 4 DMX universes simultaneously (with 4 W-APP transceivers)

• Size: 15.5 x 12 x 5 cm / 6.1 x 4.7 x 2 in
• Weight: 0.7 kg / 1.54 lbs
• Power requirement: 100-240 V / 50-60 Hz

• Can
• Mini
• Maxi
• Stick
• MobiLight 4
• W-APE
• PSU
• ApeRemote

• 1x W-App
• 2x Omnidirectional Antenna
• 1x Power Supply Unit (100-240V)
• Ape Labs Android App (unlimited device downloads)KEY FACTS
• Dongle for Ape Labs Android App or DMX Controller
• 1,000ft Wireless DMX Range
• DMX Transmitter or Receiver
• Compatible with All DMX Controllers
• Android Phone / Tablet Required for Use
• Built-in Battery with 50 Hours of Operation per ChargeKEY APE LABS APP FEATURES

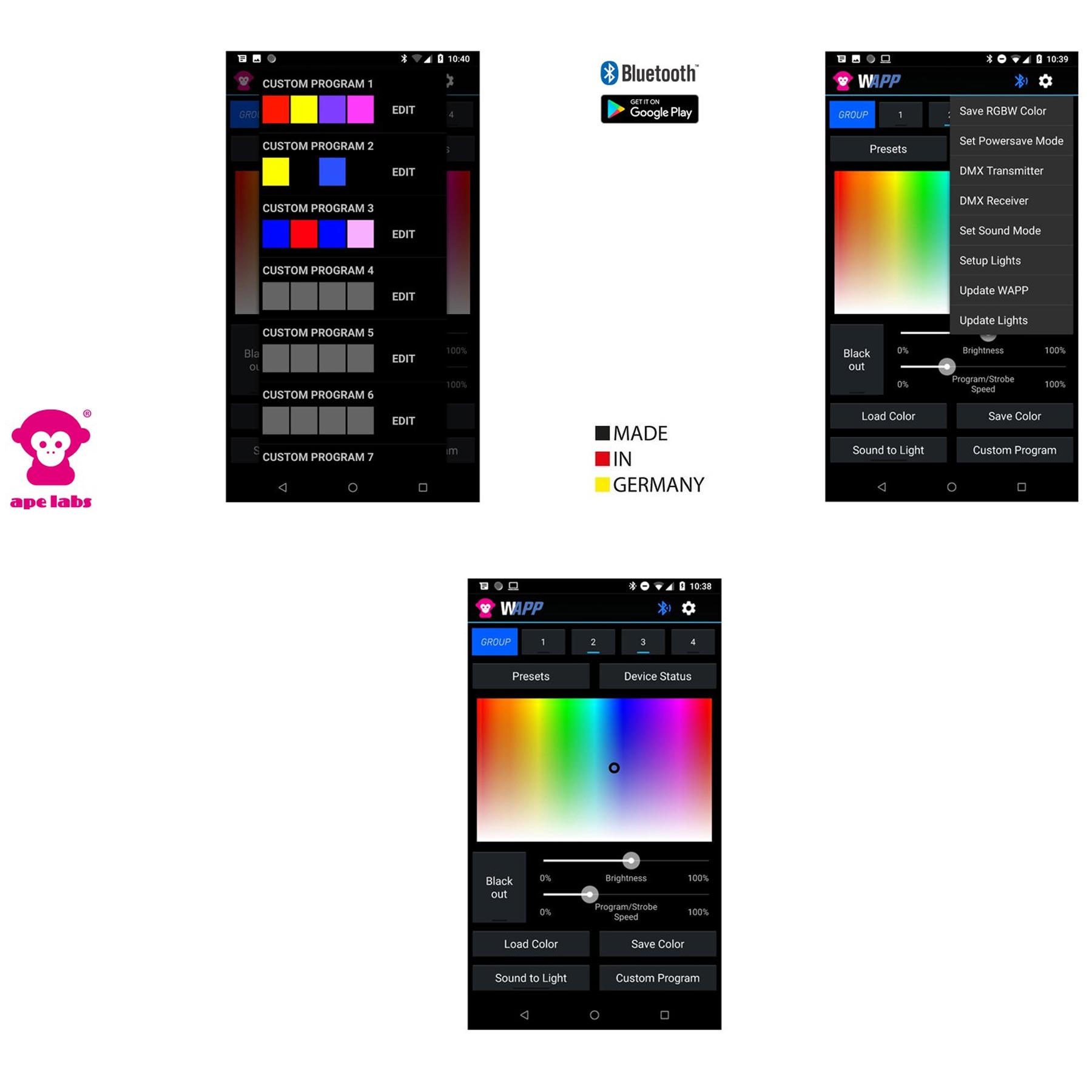

• Color Wheel / Color Pallet Picker
• Save Custom Colors
• Save Custom Programs
• Trigger Preset Colors / Programs
• Set Battery Run-time (auto adjust brightness to reach desired run-time)
• Wirelessly Update, Address, and Set-up Fixtures
• Trigger one, two, three, or all four groups at once
• Select Sound Active Mode (universal sync or individual mics)
• Wireless DMX Transmitter for use with any controller
• Wireless DMX Receiver for use with non Ape Labs products (DMX mode)
• Adjustable Brightness, Speed & Strobe (0-100%)
• Blackout (some or all groups)DESCRIPTION

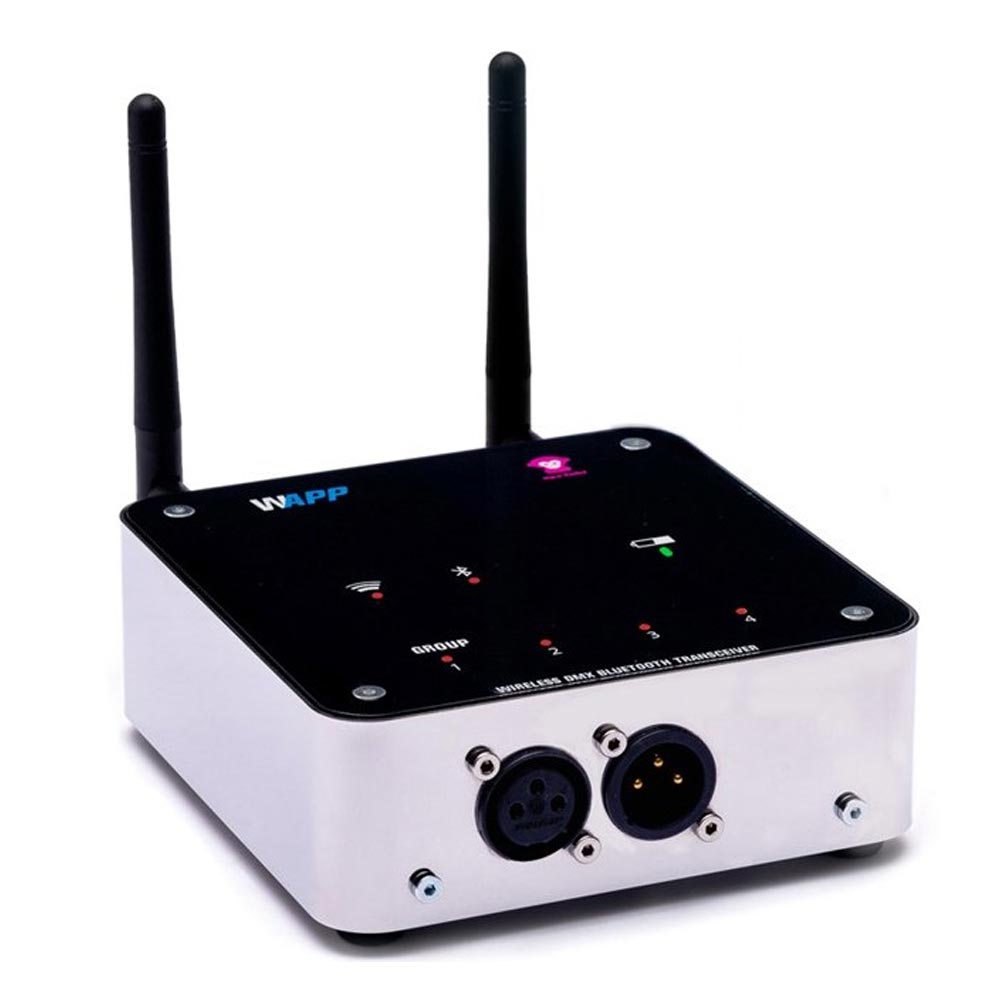

• The W-APP Bluetooth wireless DMX transceiver is the central transmitter station to control Ape Labs LED lights wirelessly via smartphone/table or via wireless DMX.
